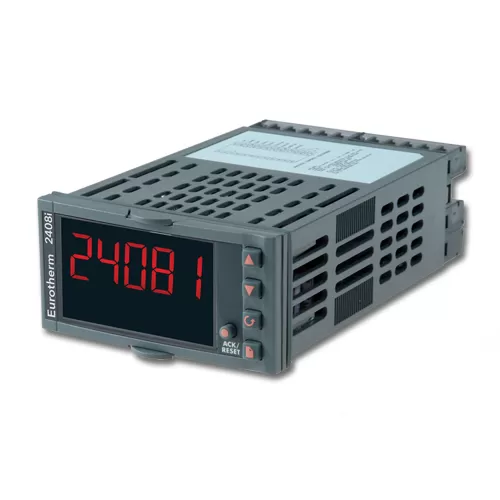

2408i Indicator and Alarm Unit
The 2408i provides you with accurate indication and alarming of temperature and process measurements. Process interlocks, including over temperature furnace limits, are implemented using relay outputs.
Description
Ideal For :
-Temperature & process indication
-Level/pressure/flow
-Process protection
-Heat treatment – furnace over temperature
-Plastics – extrusion melt pressure
-Weighing platform
Specification
Input Type
Custom, mA, mV, RTD, TC, Volts
Panel size (DIN)
1/8
IP Rating
IP65
Display Type
Large 5 digit LED
Alarm Types
Dev, Event, Hi, Lo, Rate, Sensor Break
Supply Voltage
24V dc/ac, 85-264V ac
Transmitter Power Supply
24V dc
No of Alarms
8
Safety-approvals
None
PC Configuration
List based
Transducer Power Supply
5/10V dc
User Calibration
15 Point, Auto Tare, Comparison, Load Cell, Shunt
No of Relay Outputs
7
Digital IP/Logic OP
2 plus possible further 9/9
Retransmission
Isolated
Custom Messages
None
Slave Comms
DeviceNet, Modbus RTU, Profibus DP
Melt Pressure
Yes
PV Input Selection
Derived, Hi, Lo, Select, Switchover
