P304 1/4 DIN Melt Pressure Indicator / Controller

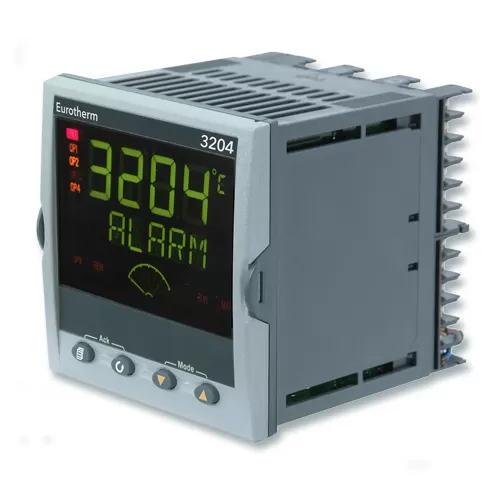

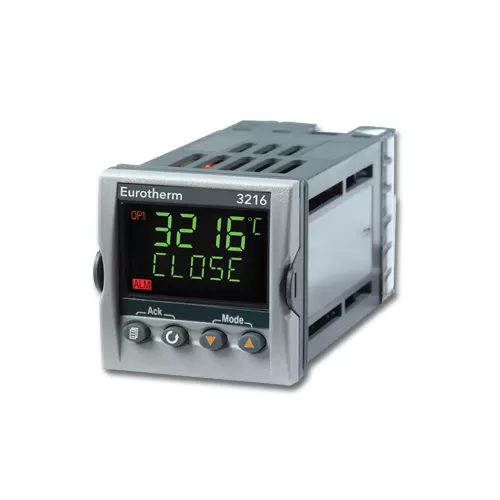

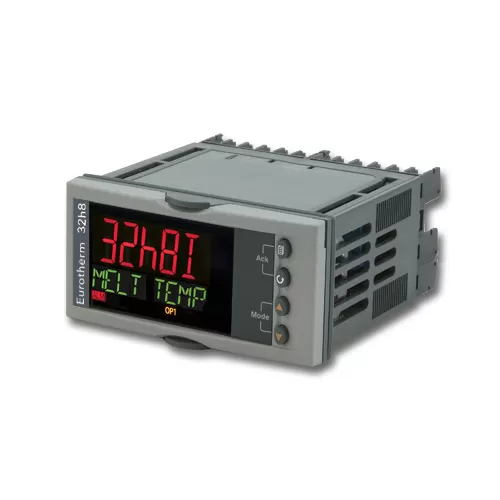

3204i, 32h8i, 3216i – Accurate indication of temperature and process measurements
The Eurotherm range of 3200i indicators offer accurate indication of temperature and process measurements. Process interlocks, including overtemperature furnace limits, are implemented using relay output channels.
The emphasis is on ease of use. A simple ‘Quick Start’ code is used to configure all the functions essential for indication and protecting your process.
Description
Ideal For :
- Large 5 digit display providing excellent visibility
- Furnace over temperature limits
- Extrusion melt pressure indication and alarming
- Fieldbus communications providing system integration
- Second process input provide additional alarming strategies
- Modular construction offering increased I/O flexibility
- Furnace over temperature limits
- Extrusion melt pressure indication and alarming
- Fieldbus communications providing system integration
- Second process input provide additional alarming strategies
- Modular construction offering increased I/O flexibility
Specification
Input Type:
Custom, mA, mV, RTD, TC

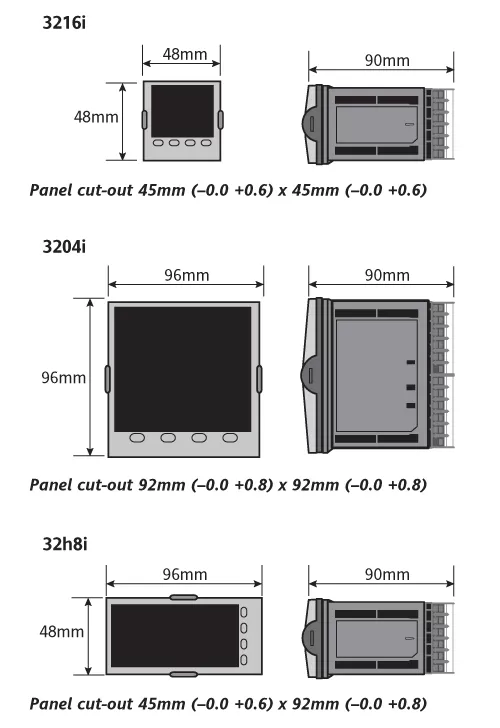

Panel size (DIN):
1/16, 1/4, 1/8
IP Rating:
IP65, NEMA 12 / NEMA 4X (3216 Only)
Control Types:
3216i, 3204i: 4 Digit LCD plus 5 character alphanumeric, 32h8i: 5 Digit LCD plus 9 character alphanumeric
Alarm Types:
Dev, Hi, Lo, Rate, Sensor Break
Supply Voltage:
100-264V ac, 24V dc/ac
Transmitter Power Supply:
24V dc, None
No of Alarms:
3
Safety-approvals:
EN14597/TW, Factory Mutual (FM) approved<br><br>
PC Configuration:
Graphical wiring
Transducer Power Supply:
10V dc, None
User Calibration:
5 point, Auto Tare, Load Cell, Shunt
No of Relay Outputs:
3216i: 3 32h8i, 3204i: 2
Digital IP/Logic OP:
2/0
Retransmission:
3216i: Non isolated 32h8i, 3204i: Isolated
Custom Messages:
128 Characters
Slave Comms:
Modbus RTU
Melt Pressure:
3216i, 3204i: No 32h8i: Yes
PV Input Selection:
None
